Single Spindle Precision Machining

Precision CNC Machining Services

Our master machinists design tooling and programs to maximize precision and speed when machining precision components – providing a consistently higher quality product at a cost savings, giving you the competitive edge.

We utilize CNC machines designed to produce the highest quality part per your design and requirements.

Contact us with questions or to request a quote.

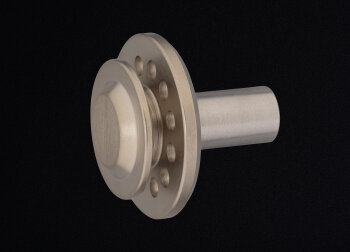

cnc complex geometry component

Single Spindle CNC Machining

Ideal for complex, geometrically challenging, tight tolerance precision components. For low, mid and high-volume precision part production. Details:

  • Diameters from .060” – 2.55”
  • Brasses, steels, Delrin, Peek, Monel, Kovar, Precious Metals
  • Surface Finishes of 2 √ or better
  • Tolerances of ± 0.0001" or better
  • Some of our machines include:
    Tornos, SwissNano, Citizen, Star, Miyano, Tsugami, Hanwha, Fanuc
Single Spindle CNC Machine

CNC Escomatic

Unlike most machines, the material in an Escomatic doesn't spin: the tools do. Material gets fed into an Escomatic (which can be CNC or cam-driven) in a coil rather than bar form and the tools spin at high RPM around the material. This allows for high precision and machining speed without a cutoff burr!

Ideal for relatively simple, yet precision components. This highly flexible machine is used for high volume part production. Details:

  • Precision parts with a max OD (Round) .875”
  • Precision parts with a max OD (Hex) .750
  • Precision parts with max Length 4”
  • Precision parts with a standard tolerance +/- .001 with capability up to +/-.0006”
  • CNC machining with a variety of materials including: Brasses, stainless steels, steels, plastics and more

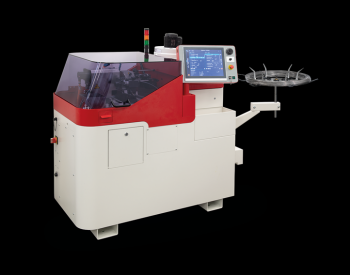

CNC Escomatic

High Surface Finishing Available

We offer high surface finishing for parts that require a mirror-like finish.
