High Precision Machining

Our high precision machining philosophy is simple – make the part complete on the machine without costly secondary operations.

We produce high precision components in all sizes:

  • From subminiature components (.010” diameter) to large parts (up to 1.50” diameter) from a variety of materials.
  • Close tolerances of ±.0005” on a part are achieved routinely on the machine.  Tolerances of ±.0002” well within our capability.

Our master machinists design tooling and programs to maximize precision and speed when machining precision components – providing a consistently higher quality product at a cost savings, giving you the competitive edge.

All our production comes complete with lot traceability, material certifications, SPC documentation and is backed by our ISO:9001 certification.

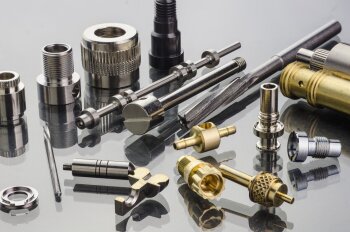

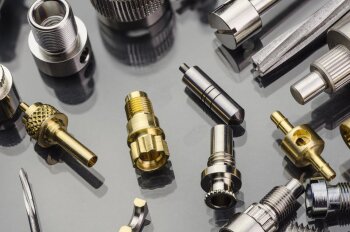

Micro Precision is your one stop high precision machine shop for ALL custom-made precision components such as:

  • Shafts with tight tolerances and high surface finishes
  • Parts with critically tolerance diameter and/or lengths
  • Fittings & Nozzles with sharp barbs and other critical sealing surfaces
  • Components with “mirror like” (better than 4 microinch!) surface finishes

High Surface Finishing Available

We offer high surface finishing for parts that require a mirror-like finish.



 “Precision deep hole drilling is often required when making a tight tolerance electronic connector... we developed a proven drilling system that machines very small diameter holes 25 times longer than the outside diameter of the part - all while holding tolerances of +/- .0001”.”

- "Pushing the Limits in Tight Tolerances" Case Study

Read more...

Micro Tolerances Swiss Machined Parts

Micro Tolerances Swiss Machined Parts

Whether you need large or small machined parts, we can provide a cost effective solution if there are tight tolerances. Tolerances of ±.0005” are routine for us with tolerances of ±.0002” well within our capability.

Precision Deep Hole Drilled Swiss Machined Parts

Precision Deep Hole Drilled Swiss Machined Parts

We constantly push the limits of high precision Swiss screw machining by drilling deep, tight tolerance holes in various materials. We routinely machine 20:1 (length: Ø) drilling ratio from copper alloys.  We machine primarily solid stock providing better control over circularity, tolerances, and total runout.

Complex Geometry & Large Diameter Swiss and Non Swiss Machining

Complex Geometry & Large Diameter Swiss and Non Swiss Machining

Large or small, even if your part does not have tight tolerances, Micro Precision can help. With our “complete on the machine” philosophy, complexity or challenging geometry alone can make Micro Precision Components a cost saving solution.

Threaded Machined Parts (Both Swiss and Non Swiss)

Threaded Machined Parts (Both Swiss and Non Swiss)

We offer a full range of threading capabilities. We are able to machine threads of 000-80 size up to ½-20 and larger. Extra fine threads to pipe threads are all standard operations for us.

Slotted & Crimped Swiss Machined Parts

Slotted & Crimped Swiss Machined Parts

We slot and crimp parts from various materials such as the Brass, Phosphor Bronze and Stainless Steel parts shown on our sample pages. We can produce slot widths of .015″ or less, when required.
